FR4 PCB UHF RFID Module with 2 meters read distance and free sdk demo

Brand Name : Sunshine

Model Number : M2100-V3

Certification : CE-ROSH

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T, Western Union

Packaging Details : carton

working frequency : 840～960MHz

Support area : China, Japan, Europe, the United States, South Korea, Taiwan ……

Maximum working current : 500mA

Dormant current : 100uA

Maximum read distance of label : ＞2meters (2dBi ceramic antenna )

Antenna interface : MMCX

PCB material : FR4

Contact Now

UHF RFID module with 2 meters read distance and free sdk demo


Specification

  • Read distance : ＞2meters (2dBi ceramic antenna )
  • Application :Vehicle RFID Management System,Logistics/Warehouse RFID Management System

  • Application scenarios:

  • Storage: intelligent storage management program
  • Electricity: intelligent Inspection tour management solution, electric assets tracking management system
  • Exhibition: Access control, data acquisition solution, RFID wrist strap technology solutions in the exhibition center,
  • Manufacture: garment manufacturer’s operational sequence solution
  • Interlock: running multiple shop’s management solution
  • Express: express and logistics industry’s mobile application
  • Transportation: jeeves,smart parking’s charging solution
  • Medicine: the application of the electronic supervision of drug
  • Highroad: road traffic inspection management solution
  • Asset: Mobile assets inventory management system, routing inspection management system.
  • Traceability: products/goods traceability management system.
  • Anti-fake: cigarettes and wine, valuables’ anti-fake application
  • Sales: the retail inventory, promotion, cargo inventory management
  • Agriculture: smart agriculture and forestry management solution, Temperature and humidity monitoring system.
  • Operator: the base station inspection, network optimization



 Main performance parameters


Category Specification parameter Remarks
Name M2100_V3
Air interface protocol EPCglobal UHF Class 1 Gen 2/ISO 18000-6C
working frequency 840～960MHz
Support area China, Japan, Europe, the United States, South Korea, Taiwan ……

working voltage DC5V
Maximum working current 500mA In the case of 25dBm output power
Standby current 30mA
Dormant current 100uA
RF port maximum output power 25dBm It Can be adjusted directly from 5dBm to 25dBm
Maximum read distance of label ＞2meters (2dBi ceramic antenna ) The actual distance is related to the label and environment
working temperature -20℃～+70℃
Working humidity ≤95%(+25℃)
Storage temperature 0℃～+90℃
Maximum receiving sensitivity -60dBm
Antenna interface impedance 50Ω

Serial communication parameters Baud rate adjustable (default 115200bps), parity bit: No, data bit: 8 bit, stop bit: 1 bit

Antenna interface MMCX Gold plated brass
PCB material FR4
PCB surface treatment Gold-plated
PCB color Blue + Black
Shield material Yang paktong

Heat dissipation mode

 Natural cooling of air





The default interface adopts 2 20 pin dual row spacing, defined as follows:


20 pipe feet Name Description
1 GND Power negative input
2 GND Power negative input
3 +5V 5V power positive input
4 +5V 5V power positive input
5 +5V 5V power positive input
6 +5V 5V power positive input
7 GND land
8 GND land
9 P-EN Power control terminal (input high level, module running normally, input low level, cut off power)
10 GND land
11 GND land
12 DIO Module programming data interface (internal use)
13 GND land
14 CLK Modular programming clock interface (internal use)
15 GND land
16 GND land
17 UART TX Serial interface transmission, TTL level, low level of 0V, high level of 3.3V
18 UART RX Serial interface receiving, TTL level, low level 0V, high level 3.3V to 5.0V
19 GND land
20 GND land




































The FPC_10PIN connector position is reserved for 1.0MM, up type and defined as follows :

10 pipe feet Name Description Remarks
1 UART TX Serial interface transmission, TTL level, low level of 0V, high level of 3.3V
2 UART RX Serial interface receiving, TTL level, low level 0V, high level 3.3V to 5.0V
3 GPIO3 The GPIO output is only ininput, the output is 3.3V, and the low level is 0V. (default output level is low level 0V) Programmable use
4 GPIO2 The GPIO output is only ininput, the output is 3.3V, and the low level is 0V. (default output level is low level 0V) Programmable use
5 GPIO1 The GPIO output is only ininput, the output is 3.3V, and the low level is 0V. (default output level is low level 0V) Internal use
6 P-EN Power control terminal (input high level, module running normally, input low level, cut off power) Low power application
7 GND Power negative input
8 GND Power negative input
9 +5V 5V power positive input
10 +5V 5V power positive input

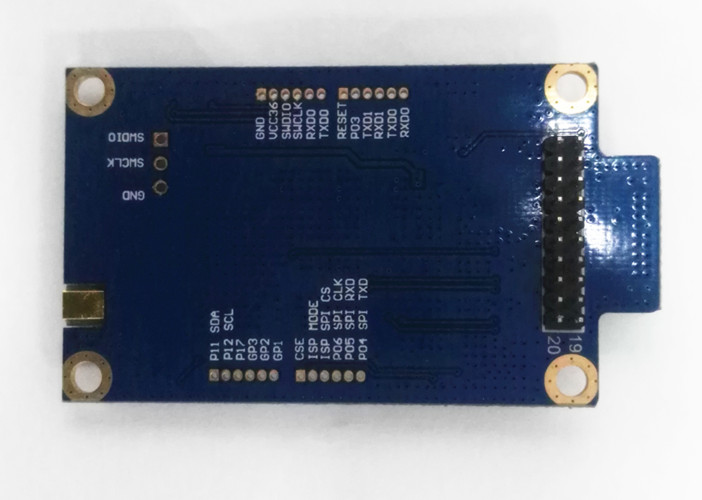

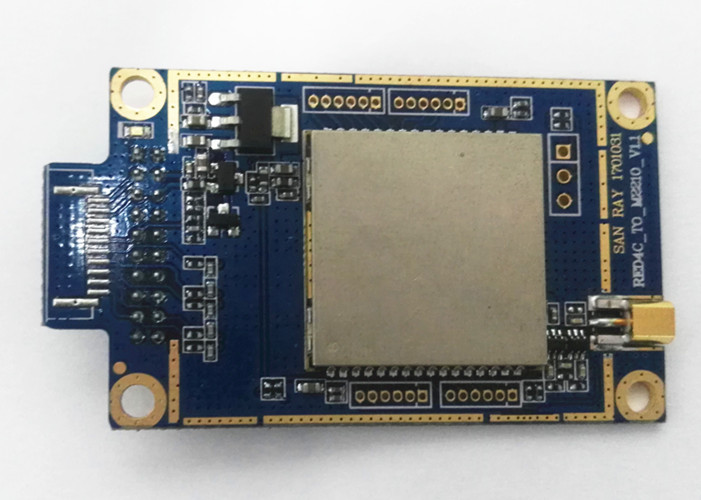

3: M2100_V3 Module physical picture




 Figure 3:M2100_V3 physical map
4,Channel frequency examples
5.1 china frequency

Channel Frequency channel Frequency
1 920.125 MHz 11 922.625 MHz
2 920.375 MHz 12 922.875 MHz
3 920.625 MHz 13 923.125 MHz
4 920.875 MHz 14 923.375 MHz
5 921.125 MHz 15 923.625 MHz
6 921.375 MHz 16 923.875 MHz
7 921.625 MHz 17 924.125 MHz
8 921.875 MHz 18 924.375 MHz
9 922.125 MHz 19 924.625 MHz
10 922.375 MHz 20 924.875 MHz



5.2 Japan frequency

Channel Frequency Channel Frequency
24 920.6 MHz 32 922.2 MHz
25 920.8 MHz 33 922.4 MHz
26 921.0 MHz 34 922.6 MHz
27 921.2 MHz 35 922.8 MHz
28 921.4 MHz 36 923.0 MHz
29 921.6 MHz 37 923.2 MHz
30 921.8 MHz 38 923.4 MHz
31 922.0 MHz


 FR4 PCB UHF RFID Module with 2 meters read distance and free sdk demo



FR4 PCB UHF RFID Module with 2 meters read distance and free sdk demo





Note: other regional frequencies please refer to the regional regulations
