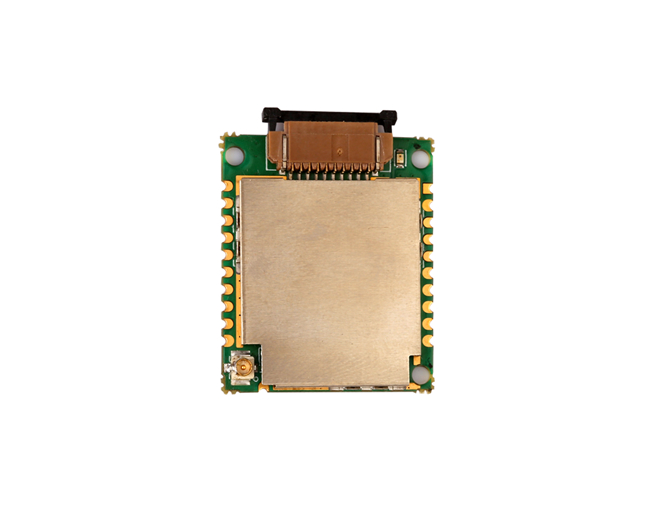

Vehicle System 9200 UHF RFID Module With ISO 18000 - 6C High Performance

Brand Name : SUNSHINE

Model Number : M2100

Certification : CE ,ROSH

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T, Western Union

Packaging Details : Carton

Air interface protocol : EPCglobal UHF Class 1 Gen 2/ISO 18000-6C

working frequency : 840～960MHz

Operating Voltage : DC 5V

Maximum operating current : ＜350mA

Tag maximum read distance : ＞2.5 m (2dBi ceramic antenna + normal white card)

Maximum receiver sensitivity : -60dBm

Antenna Impedance : 50Ω

Contact Now

9200 UHF RFID Module with ISO 18000-6C for Vehicle System



Application

  • Highroad: road traffic inspection management solution
  • Asset: Mobile assets inventory management system, routing inspection management system.
  • Traceability: products/goods traceability management system.
  • Anti-fake: cigarettes and wine, valuables’ anti-fake application
  • Sales: the retail inventory, promotion, cargo inventory management
  • Agriculture: smart agriculture and forestry management solution, Temperature and humidity monitoring system.
  • Operator: the base station inspection, network optimization

Performance parameters



Name Parameters Remark
M2100 Version V3.0
Air interface protocol EPCglobal UHF Class 1 Gen 2/ISO 18000-6C
working frequency 840～960MHz
Support area China, Europe, America, Korea, Japan, Taiwan ......

Operating Voltage DC 5V
Maximum operating current ＜350mA
Standby Current ＜15mA
Sleep Current ＜0.5mA
Maximum RF output power port 28dBm
Tag maximum read distance ＞2.5 m (2dBi ceramic antenna + normal white card)
Operating temperature -25℃～+65℃
Working humidity ≤95%(+25℃)
Storage temperature -40℃～+80℃
Maximum receiver sensitivity -60dBm
Antenna Impedance 50Ω

Serial communication parameters Baud rate adjustable (default 115200bps), Parity: None Data bits: 8, stop bits: 1

Antenna Interface IPEX
Module Interface Pick + 20PIN 2.0MM pitch stamp holes 10PIN FPC
Dimension 30.0×25.0×4.0MM (Including shield)



M2100 FPC PIN Definition



Pin Name Description Remark
1 UART TX0 Serial interface to send, TTL level
2 UART RX0 Serial interface reception, TTL level
3 P03 GPIO PORT
4 P10 GPIO PORT
5 P15 GPIO PORT
6 P_EN Power enable pin, set low (0V) when the module enters Sleep mode
7,8 GND GND
9,10 VCC Power supply pin, the input voltage is 3.7V ~ 5.5V



M2100 Stamp hole defined PIN



Pin Name Description Remark
1 VCC Power supply pin, the input voltage is 3.7V ~ 5.5V
3 P_EN Power enable pin, set low (0V) when the module enters Sleep mode
3 SWCLK Serial debug clock signal
4 SWDIO Serial debugging data input and output
11 UART RX0 Serial interface reception, TTL level
12 UART TX0 Serial interface to send, TTL level
13 P03 GPIO Port
14 P10 GPIO Port
15 UART TX1 Serial interface to send, TTL level
16 UART RX1 Serial interface to send, TTL level
17 P15 GPIO Port
18 P16 GPIO Port
19 P17 GPIO Port
2,6,7,8,9,10,20 GND GND
21 RF_OUT RF antenna interface
