Ultra High Frequency RFID Reader , Fixed RFID Reader RS232 / RS485 / TCP / IP Interface

Name: Ultra High Frequency RFID Reader Fixed RFID Reader RS232 RS485 TCP IP Interface
Brand: SUNSHINE
Price: 1 USD

Brand Name : SUNSHINE

Model Number : F5012

Certification : CE,ROSH

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T, Western Union

Packaging Details : Carton

Tag Protocol : EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

Working Frequency : 840～960 MHz

Reading Distance : ≥14m（relate to tags type, transmitted power and application environment）

Multi-tags Reading : ≥400tags/s

Communication Port : RS485,RS232(DB-9)RJ45(100M Ethernet port)

Interface Communication Rate : 115200bps

Contact Now

Ultra High Frequency Antenna Integrated RFID Reader With RS232/RS485/TCP/IP Interface

Details of Integrated long range UHF RFID Reader F5009-H

F5009-H UHF RFID Integrative Reader/Writer is a high-performance reader/writer designed for high challenging RFID application environment. It employs the SR-M2210 RF module as core and bases on the IMPINJ R2000 RF Chip, which provide the customers unprecedented performance of reading and writing experience. The maximum power output of this reader/writer is 30dBm, with 9dbi built-in gain antenna, which can realize a stable reading distance of 9m and the maximum of 12m. It owns a superior multi-tags reading rate and can achieve a tag identification rate of 400tags/s or above.
This product is suitable for RFID intensive and more challenging environment and required a higher reading/writing performance, such as warehousing, logistics, production line management, etc..

Product Electrical Parameters

NO.	Name	Parameters
1	Working Voltage	DC +12V
2	Working Temperature	-25～+65℃
3	Working Humidity	≤95%(+25℃)
4	Storage Temperature	-40～+80℃
5	Tag Protocol	EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
6	Working Frequency	840～960 MHz
7	Supporting Working Areas	China 1, China 2 US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Japan,Korea,Malaysia,Taiwan
8	Output Power	Software adjustable, step interval 1.0dB, maximum +30dBm
9	Output Power Flatness	±0.2dBm
10	Receiving Sensitivity	-82dBm
11	RF Port Standing Wave	≤1.5
12	Reading Distance	≥14m(relate to tags type, transmitted power and application environment)
13	Multi-tags Reading	≥400tags/s
14	Interface Communication Rate	115200bps
15	Working Temprature Detection	Support
16	Intensive Read/Write Mode DRM	Support
17	Antenna Connection Protection	Support
18	RSSI	Support
19	Antenna Type	12dbi linear polarization antenna
20	Communication Port	RS485,RS232(DB-9)RJ45(100M Ethernet port)
21	Buzzer	Yes
22	Enclosure	ABS industrial plastic case
23	Dimension	44.544.57.5CM
24	IP Grade	IP64

Interface definition

Pin NO.	Name	Description
1	485-A	RS485 A
2	485-B	RS485 B
3	GND	Ground
4	GND	Ground
5	E-6	Ethernet RJ45 PIN6
6	E-3	Ethernet RJ45 PIN3
7	+12V	DC +12 Power supply
8	GND	Ground
9	E-1	Ethernet RJ45 PIN1
10	E-2	Ethernet RJ45 PIN2
11	232-RX	RS232 RX
12	232-TX	RX232 TX

Ultra High Frequency RFID Reader , Fixed RFID Reader RS232 / RS485 / TCP / IP Interface

FAQ

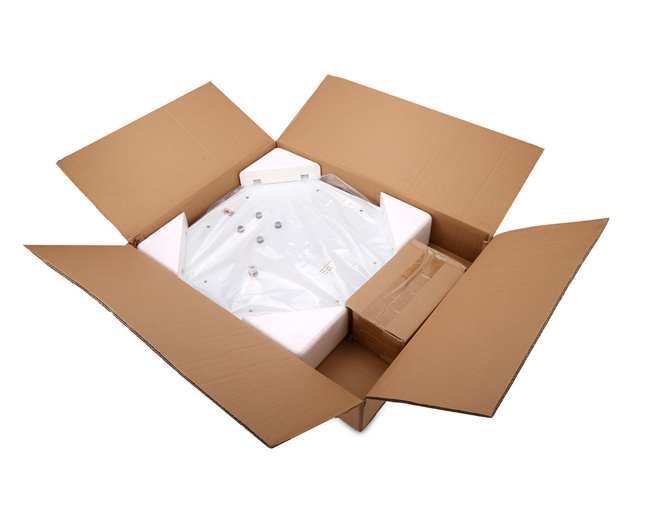

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
