Product Description
F5006-H is a high-end medium distance integration UHF RFID reader and product. Its design is equipped with our UHF M2210 read-write module and 6dBi circularly polarized antenna, and the main chip is selected by the new generation of high-performance ARM-COTEXM3 processor. It has many communication equipment, watchdog, heartbeat and real-time monitoring of equipment status information and other functions, and integrated with RS232.USB and 100 MB Ethernet communication interface, the reading distance can reach 5 meters, read distance and performance of ultra high frequency reader the most stable products for similar products.
F5006-H is designed with aluminum + PC shell, which has waterproof, dustproof, anti-interference ability and lightning protection design on the circuit.
It supports ISO18000-6C two protocols. It has many advantages, such as compact and portable, multi interface, long distance, fast speed, high accuracy, strong anti-interference ability, excellent protection performance and convenient installation and operation.
Technical parameters of product
| Serial number | Name | Parameter |
| 1 | working voltage | DC +12V |
| 2 | working temperature | -30～+70℃ |
| 3 | Working humidity | 5%-95% RH non condensation |
| 4 | Storage temperature | -40～+85℃ |
| 5 | Label protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| 6 | Working frequency | 840～960 MHz |
| 7 | Support the working area | China 1,China 2 US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Japan Korea Malaysia Taiwan |
| 8 | output power | The software is adjustable, the step interval is 1.0dB, and the maximum can be up to +30dBm |
| 9 | Output power flatness | ±0.2dBm |
| 10 | Reception sensitivity | -82dBm |
| 11 | RF port standing wave | ≤1.5 |
| 12 | Read distance | More than 5 meters (with the label type, transmission power and application environment) |
| 13 | Multi label reading | ≥400tags/s |
| 14 | Interface communication rate | 115200bps |
| 15 | Working temperature detection | Support |
| 16 | Dense reader mode DRM | Support |
| 17 | Antenna connection protection | Support |
| 18 | Return signal acceptance intensity RSSI | Support |
| 19 | Antenna type | 6dBi Circular polarized antenna |
| 20 | Communication interface | RS232(DB-9)and RJ45(100 megabyte network interface ),USB |
| 21 | Buzzer | yes |
| 22 | Design | aluminum + PC |
| 23 | Appearance size | 12.9.0*12.9.0*4.5CM |
| 24 | IP address | IP64 |
| 25 | Weight | 1.0Kg |

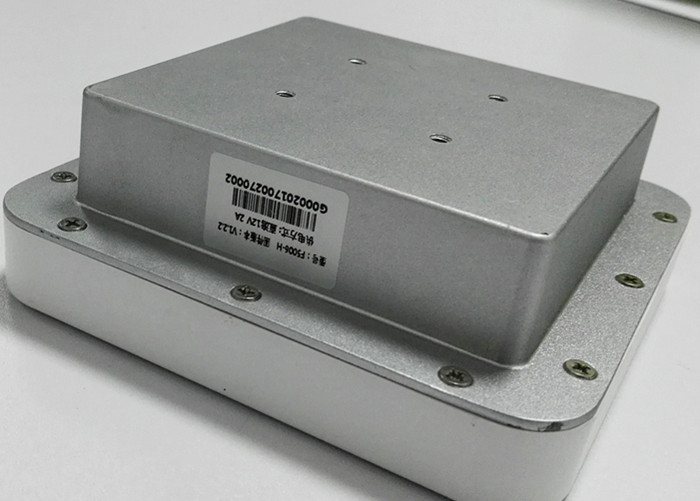

Product Image
Q: Are you trading company or manufacturer ?
A: We are factory with trading department
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. Or it is 8-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance.
B: Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
